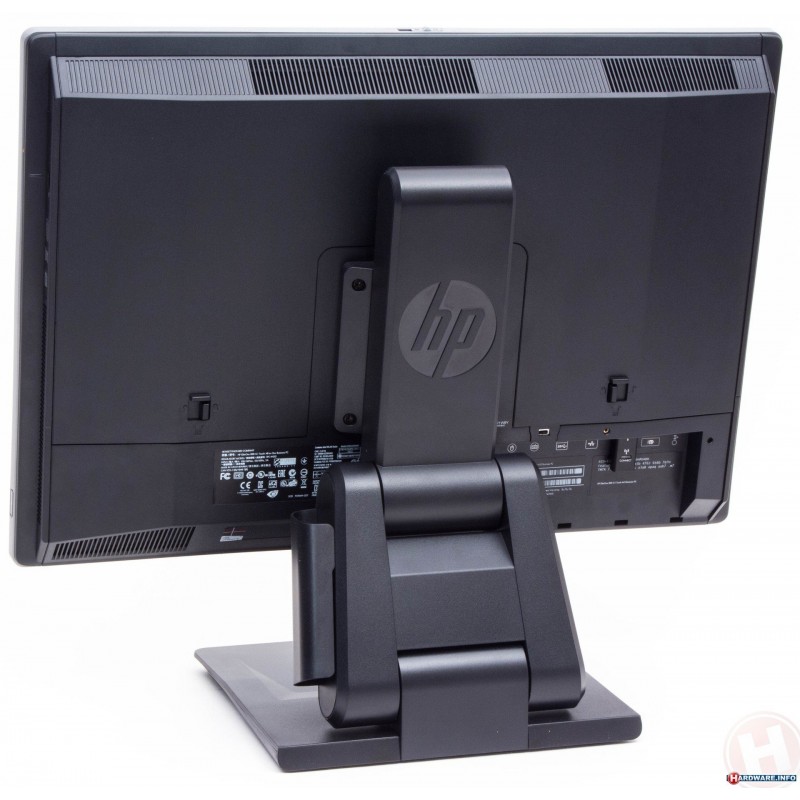

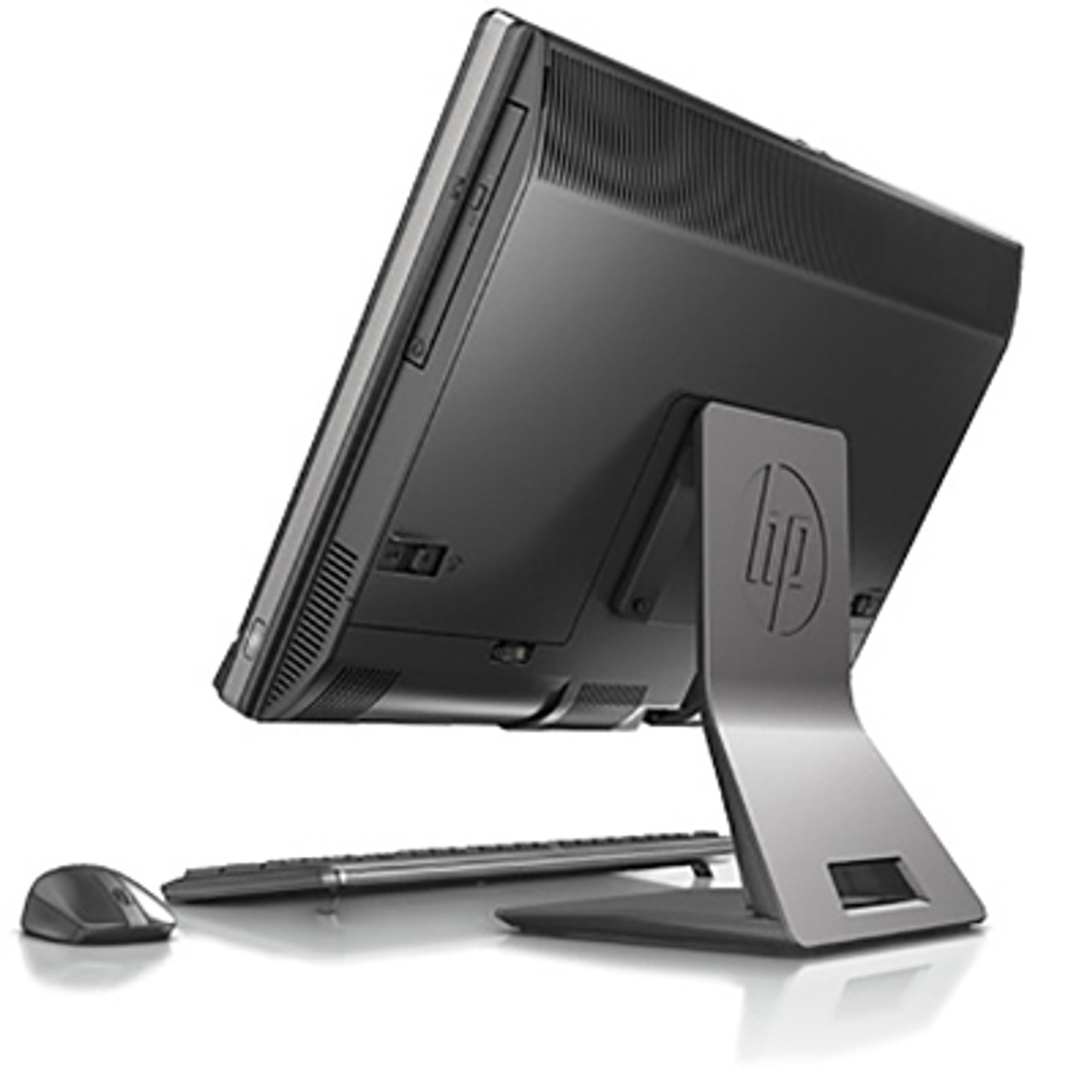

HP Compaq Elite 8300 All-in-One ci5 3rd Gen

Description

The HP Compaq Elite 8300 is a business-class desktop PC available in multiple form factors: Small Form Factor (SFF), Convertible Minitower (CMT), Ultra-Slim Desktop (USDT), and All-in-One (AIO). Below is a comprehensive overview of the full specifications based on available information, covering the primary configurations. Since specifications vary by form factor and region, I’ll provide a detailed breakdown with common components and options.

—

### **HP Compaq Elite 8300 Full Specifications**

#### **General Overview**
– **Product Line**: HP Compaq Elite 8300 Series
– **Form Factors**: Small Form Factor (SFF), Convertible Minitower (CMT), Ultra-Slim Desktop (USDT), All-in-One (AIO)
– **Target Use**: Corporate business, small business, enterprise environments
– **Operating Systems (Preinstalled)**:
– Windows 7 Professional (32-bit or 64-bit)
– Windows 8 Pro (with downgrade to Windows 7 Pro available)
– Windows Vista Professional (32-bit or 64-bit, limited configurations)
– FreeDOS or Linux-based options in some regions
– Note: Comes with a license and media for Windows 8 Pro in some configurations[](https://www.manualslib.com/manual/575063/Hp-Compaq-Elite-8300.html)

#### **Processor**
– **Processor Family**: 3rd Generation Intel Core vPro (Ivy Bridge)
– **Models**:
– Intel Core i3-3220 (3.3 GHz, 3 MB cache, 2 cores)
– Intel Core i5-3470 (3.2 GHz, up to 3.6 GHz Turbo, 6 MB cache, 4 cores)
– Intel Core i5-3570 (3.4 GHz, up to 3.8 GHz Turbo, 6 MB cache, 4 cores)
– Intel Core i7-3770 (3.4 GHz, up to 3.9 GHz Turbo, 8 MB cache, 4 cores)
– Intel Core i5-3470s (2.9 GHz, used in AIO models)[](https://www.ecopc.com/en/desktop-pc-all-in-one/hp-compaq-elite-8300-aio-touch-intel-core-i5-3470-23-fhd)
– **Chipset**: Intel Q77 Express[](https://www.comx.co.za/A2K86EA-specifications-75180.htm)

#### **Memory**
– **Type**: DDR3-SDRAM, Non-ECC, 1600 MHz
– **Capacity**:
– Standard: 4 GB or 8 GB (2 x 2 GB or 2 x 4 GB)
– Maximum: Up to 32 GB (4 DIMM slots in SFF/CMT, 2 SO-DIMM slots in AIO/USDT)
– **Configurations**:
– SFF/CMT: 4 slots, supports dual-channel memory
– AIO: 2 SO-DIMM 204-pin slots
– USDT: 2 SO-DIMM slots
– **Note**: Slot 1 (black) must always be populated in AIO configurations[](https://support.hp.com/us-en/document/c03454218)[](https://support.hp.com/us-en/product/details/hp-compaq-elite-8300-all-in-one-desktop-pc/5272027)

#### **Storage**
– **Hard Drives**:
– 250 GB, 500 GB, or 1 TB SATA HDD (7200 RPM, 6.0 Gb/s)
– Optional: 2 TB SATA HDD
– **Solid State Drives**:
– 120 GB or 256 GB SATA SSD (optional)
– **Optical Drives**:
– DVD Super Multi (DVD±RW)
– Blu-ray Writer (select models)
– **RAID Support**: RAID 0/1 supported with DriveLock for enhanced security[](https://www.manualslib.com/manual/575063/Hp-Compaq-Elite-8300.html)
– **Removable Storage**:
– HP Slim Removable SATA HDD Frame/Carrier (optional)
– Media Card Reader (Secure Digital HC, select models)[](https://support.hp.com/us-en/product/details/hp-compaq-elite-8300-all-in-one-desktop-pc/5272027)

#### **Graphics**
– **Integrated**:
– Intel HD Graphics 2500 (with Core i3/i5 processors)
– Intel HD Graphics 4000 (with Core i7 processors)
– **Discrete (Optional)**:
– NVIDIA GeForce GT630 DP (2 GB, PCIe x16, compatible with MT/CMT)
– AMD Radeon HD 6350, HD 7450, or HD 7650A (select models)
– **Display Outputs**:
– 1 x VGA
– 1 x DisplayPort (supports dual-monitor setups)
– Optional HP DP to HDMI adapter (audio supported with DVI to HDMI adapters)
– **AIO Display**:
– 23-inch Full HD LED (1920 x 1080), optional touch module
– Anti-glare, 250 nits brightness[](https://www.ecopc.com/en/desktop-pc-all-in-one/hp-compaq-elite-8300-aio-touch-intel-core-i5-3470-23-fhd)

#### **Audio**
– **Integrated**: Realtek ALC261 2-channel High Definition Audio
– **Features**:
– Front microphone port (re-taskable as Line-in, Microphone-in, or Headphone-out)
– Rear audio input ports (re-taskable as Line-in or Microphone-in)
– SRS Premium Sound for VoIP, webcasts, and collaboration[](https://www.comx.co.za/A2K86EA-specifications-75180.htm)
– **AIO Specific**: Integrated speakers

#### **Networking**
– **Ethernet**: Intel 82579LM Gigabit Ethernet (GbE)[](https://www.newegg.com/hp-elite-8300-business-desktops-workstations/p/1VK-001E-05F73)
– **Wireless**:
– Wi-Fi USB Adapter (select refurbished models)
– Optional PCIe Wi-Fi card in some configurations
– **Bluetooth**: Bluetooth USB Adapter (select refurbished models)[](https://www.newegg.com/hp-elite-8300-business-desktops-workstations/p/1VK-001E-05F73)

#### **Expansion Slots**
– **Small Form Factor (SFF)**:
– 1 x PCIe x16 (2.0, low profile, 6.6” length, 35W max power)
– 1 x PCIe x16 (2.0, wired as x4)
– 2 x PCIe x1
– **Convertible Minitower (CMT)**:
– 1 x PCIe x16 (3.0, full height)
– 1 x PCIe x16 (wired as x4)
– 1 x PCIe x1
– 1 x PCI
– **Ultra-Slim Desktop (USDT)**:
– 1 x PCIe Half Mini Card
– **All-in-One (AIO)**:
– 1 x PCIe Half Mini Card
– 1 x MXM 3.0 Type A
– 1 x mSATA[](https://discountcomputerdepot.com/refurbished-computers/hp-compaq-elite-8300-all-in-one-23-hd-led-display-intel-quad-core-i5-3-20-ghz-8gb-500gb-hdd-with-keyboard-mouse-wi-fi-and-webcam-windows-10-professional/)
– **Additional**:
– Supports up to 3 HDDs and 2 ODDs in CMT[](https://media.flixcar.com/delivery/minisite/show/56/en/632505)

#### **Ports and Connectors**
– **Front**:
– 2 x USB 2.0
– 2 x USB 3.0
– 1 x Headphone
– 1 x Microphone
– **Rear**:
– 4 x USB 2.0
– 2 x USB 3.0
– 1 x VGA
– 1 x DisplayPort
– 1 x RJ-45 (Ethernet)
– 1 x Audio In
– 1 x Audio Out
– 1 x Serial (select models)
– 2 x PS/2 (keyboard and mouse, select models)[](https://media.flixcar.com/delivery/minisite/show/56/en/632505)
– **AIO Additional**:
– 1 x HDMI (optional)
– Side-mounted USB ports in some configurations[](https://www.ecopc.com/en/desktop-pc-all-in-one/hp-compaq-elite-8300-aio-touch-intel-core-i5-3470-23-fhd)

#### **Power Supply**
– **SFF**: 240W, 90% efficient, active PFC
– **CMT**: 320W, 90% efficient, active PFC
– **USDT**: 135W, external adapter
– **AIO**: 180W, internal, 90% efficient
– **Features**: HP Power Assistant for energy-efficient scheduling[](https://www.comx.co.za/A2K86EA-specifications-75180.htm)

#### **Security Features**
– **Hardware**:
– Trusted Platform Module (TPM) 1.2
– HP DriveLock (prevents unauthorized access to HDD data)
– Disableable USB ports and slots
– **Software**:
– HP ProtectTools (drive encryption, file sanitizer, credential manager)
– HP Client Security with Face Recognition (AIO models with webcam)
– Computrace agent for asset tracking[](https://support.hp.com/us-en/product/details/hp-compaq-elite-8300-all-in-one-desktop-pc/5272027)[](https://www.comx.co.za/A2K86EA-specifications-75180.htm)
– **BIOS**:
– Supports UEFI 2.1
– HP BIOS with stable roadmap, critical update notifications[](https://icecat.biz/en/p/hp/qv996av-sb1-nl-abh/compaq%2Belite-pcs-workstations-8300%2Bsff-16700539.html)

#### **Physical Specifications**
– **Small Form Factor (SFF)**:
– Dimensions: 13.3” x 3.95” x 14.9” (W x H x D)
– Weight: ~16.7 lbs (7.6 kg)
– **Convertible Minitower (CMT)**:
– Dimensions: 17.6” x 7.0” x 18.0” (W x H x D)
– Weight: ~24.5 lbs (11.2 kg)
– **Ultra-Slim Desktop (USDT)**:
– Dimensions: 9.9” x 2.6” x 10.0” (W x H x D)
– Weight: ~6.8 lbs (3.1 kg)
– **All-in-One (AIO)**:
– Dimensions: 22.0” x 8.3” x 17.4” (W x D x H, with stand)
– Weight: ~19.6 lbs (8.9 kg)[](https://www.ecopc.com/en/desktop-pc-all-in-one/hp-compaq-elite-8300-aio-touch-intel-core-i5-3470-23-fhd)

#### **Additional Features**
– **Webcam** (AIO only):
– USB HD 720P Business Webcam.

If you need specifications for a specific form factor (e.g., SFF or AIO), a particular model number, or details on a refurbished unit, please let me know, and I can narrow it down further! Additionally, I can check for real-time availability or pricing using this number 0792841921.
